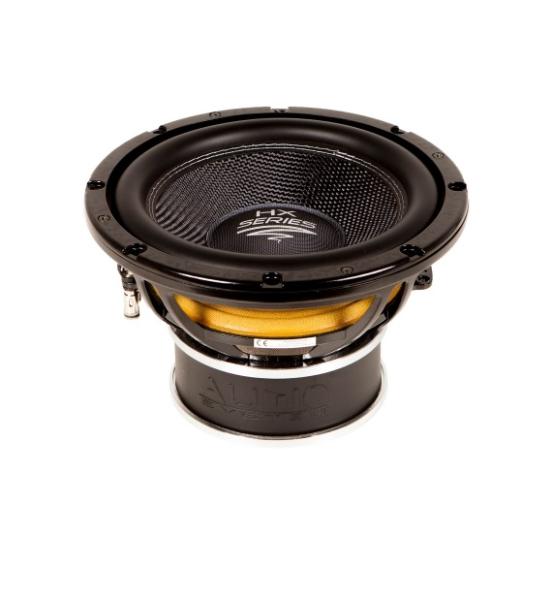

Audio System HX10 SQ
Audio System HX10 SQ
Model

Audio System HX10 SQ

Rating
DIAM
10"
FS(Hz)
27.6
VAS(l)
31.5
QTS
0.39
PWR(W)
500
SPL(dB)
83.9
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
27.6
Vas(l)
31.5
Qts
0.39
Qms
7.8
Qes
0.41
Bl(Tm)
13.8
Mms(gr)
140
Cms(mm/N)
0.024
Rms(kg/s)
3.113
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
32679
Vd(l)
0.384
X-max(mm)
12
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
238
Mounting Depth (mm)
147
Magnet Diameter (mm)
156

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
