Model

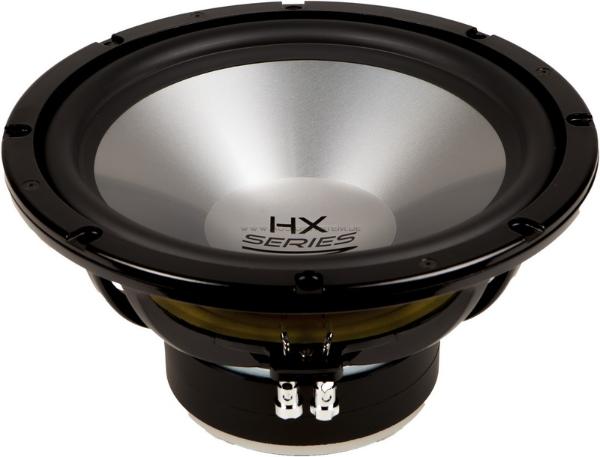

Audio System HX12 PHASE
Rating
DIAM
12"
FS(Hz)
27
VAS(l)
620
QTS
0.36
PWR(W)
750
SPL(dB)
96.9
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
620
Qts
0.36
Qms
5.9
Qes
0.38
Bl(Tm)
22.6
Mms(gr)
182
Cms(mm/N)
0.191
Rms(kg/s)
5.23
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
49100
Vd(l)
0.589
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
750
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
3.1
Sensitivity(dB) 1-W
96.9
Sensitivity(dB) 2.8-V
95.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
