Model

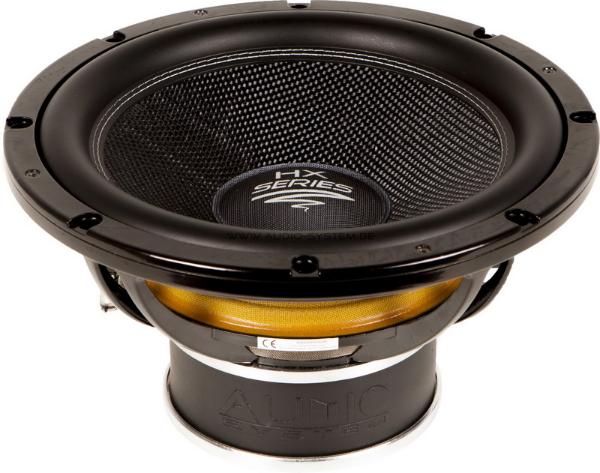

Audio System HX12 SQ
Rating
DIAM
12"
FS(Hz)
28.2
VAS(l)
68
QTS
0.5
PWR(W)
550
SPL(dB)
86.1
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28.2
Vas(l)
68
Qts
0.5
Qms
4.4
Qes
0.57
Bl(Tm)
13.1
Mms(gr)
150
Cms(mm/N)
0.212
Rms(kg/s)
6.04
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
50661
Vd(l)
0.598
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
550
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
