Model

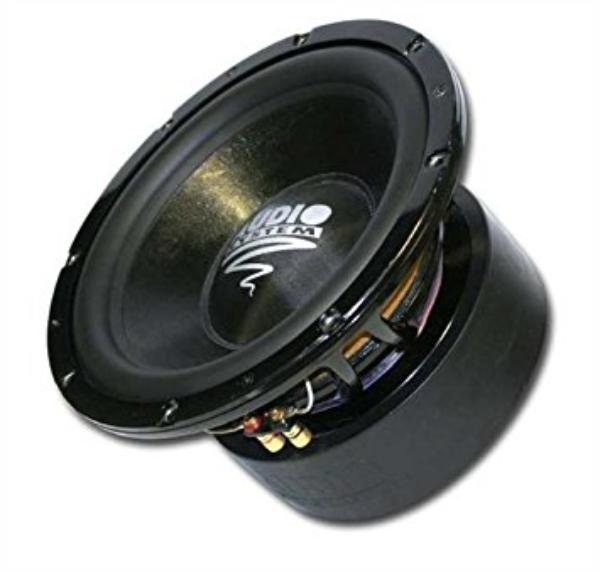

Audio System KRYPTON 12
Rating
DIAM
12"
FS(Hz)
37
VAS(l)
30
QTS
0.39
PWR(W)
1500
SPL(dB)
87.5
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
30
Qts
0.39
Qms
9.45
Qes
0.41
Bl(Tm)
17
Mms(gr)
191
Cms(mm/N)
0.097
Rms(kg/s)
4.7
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
46698
Vd(l)
0.794
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
92.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
170
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
