Model

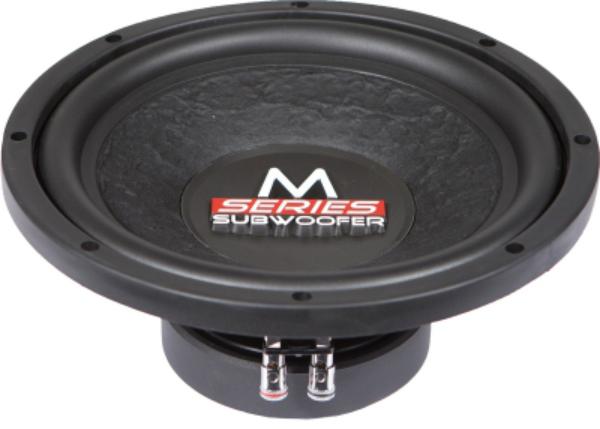

Audio System M10
Rating
DIAM
10"
FS(Hz)
35.8
VAS(l)
53.4
QTS
0.5
PWR(W)
300
SPL(dB)
88
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
35.8
Vas(l)
53.4
Qts
0.5
Qms
3.2
Qes
0.593
Bl(Tm)
0
Mms(gr)
89
Cms(mm/N)
0.222
Rms(kg/s)
6.256
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
41183
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
