Model

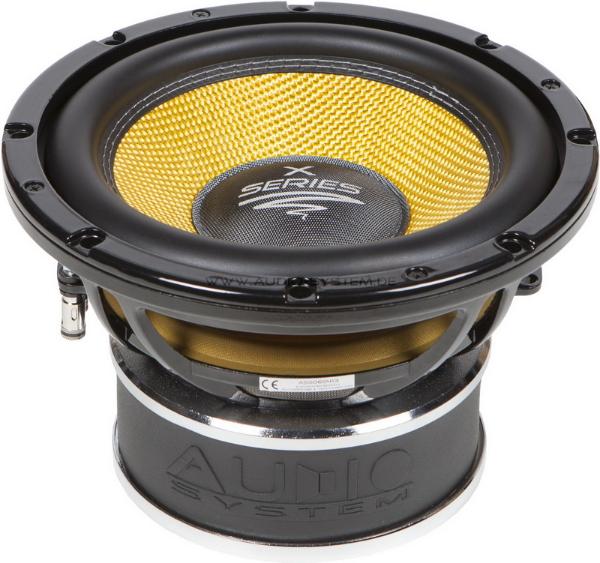

Audio System X08
Rating
DIAM
8"
FS(Hz)
40.4
VAS(l)
8.2
QTS
0.55
PWR(W)
700
SPL(dB)
81.2
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40.4
Vas(l)
8.2
Qts
0.55
Qms
5.7
Qes
0.62
Bl(Tm)
12.7
Mms(gr)
121
Cms(mm/N)
0.129
Rms(kg/s)
5.35
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
19600
Vd(l)
0.333
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
81.2
Sensitivity(dB) 2.8-V
85.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
220
Cutout Diameter (mm)
184
Mounting Depth (mm)
138
Magnet Diameter (mm)
186
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
