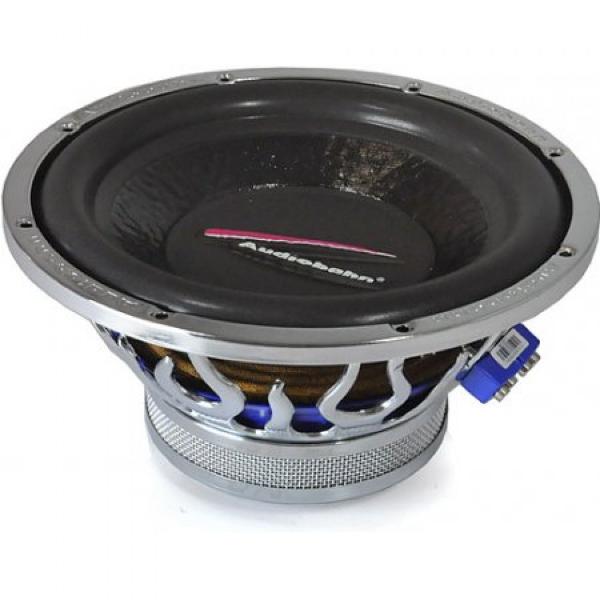

Audiobahn AW1051T
Audiobahn AW1051T
Model

Audiobahn AW1051T

Rating
DIAM
10"
FS(Hz)
42.7
VAS(l)
19.8
QTS
0.82
PWR(W)
600
SPL(dB)
83.9
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
42.7
Vas(l)
19.8
Qts
0.82
Qms
5.64
Qes
0.96
Bl(Tm)
8.9
Mms(gr)
94
Cms(mm/N)
0.148
Rms(kg/s)
4.472
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
33000
Vd(l)
0.429
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.832
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
118
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
