Model

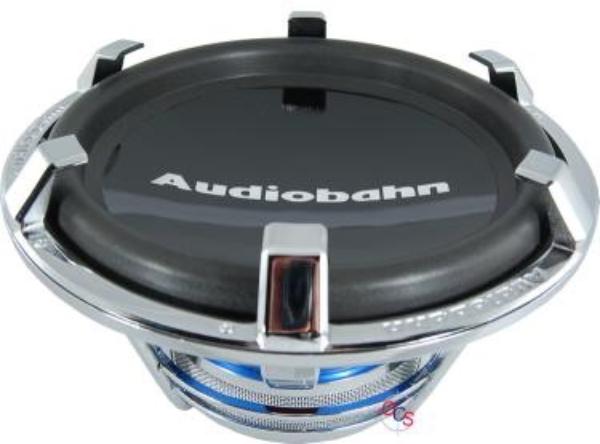

Audiobahn AW1200V
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
52
QTS
0.55
PWR(W)
1400
SPL(dB)
87.5
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
52
Qts
0.551
Qms
6.504
Qes
0.602
Bl(Tm)
13.7
Mms(gr)
136
Cms(mm/N)
0.152
Rms(kg/s)
4.57
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
45000
Vd(l)
0.608
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
90.8
Mounting Information
Speaker Displacement (l)
5.1
Total Diameter (mm)
324
Cutout Diameter (mm)
283
Mounting Depth (mm)
143
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
