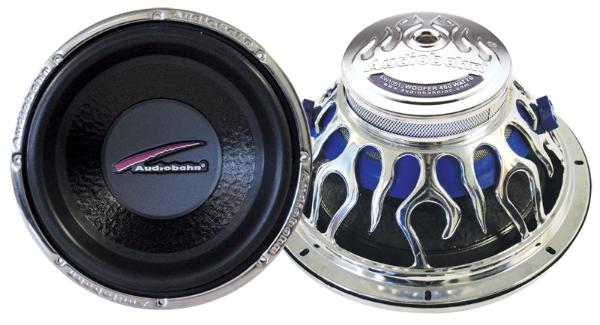

Audiobahn AW1251T
Audiobahn AW1251T
Model

Audiobahn AW1251T

Rating
DIAM
12"
FS(Hz)
37.4
VAS(l)
69.4
QTS
0.76
PWR(W)
800
SPL(dB)
88
IMP(Ohm)
4x2
avb
NOPROD

Thiele-Small Parameters

Fs(Hz)
37.4
Vas(l)
69.4
Qts
0.76
Qms
5.28
Qes
0.888
Bl(Tm)
9.9
Mms(gr)
105
Cms(mm/N)
0.172
Rms(kg/s)
4.673
Le(mH)
1.4
Re(Ohm)
3.5
Sd(sq.mm)
52000
Vd(l)
0.364
X-max(mm)
7
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
91.6

Mounting Information

Speaker Displacement (l)
4.247
Total Diameter (mm)
0
Cutout Diameter (mm)
276
Mounting Depth (mm)
134
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
