Model

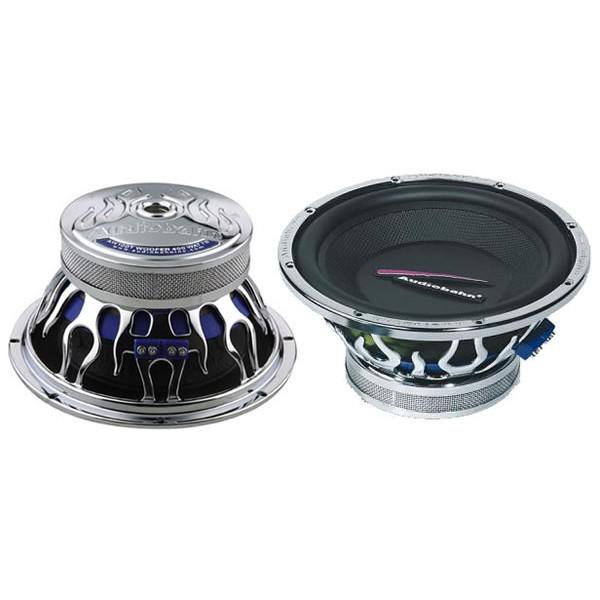

Audiobahn AW150T
Rating
DIAM
15"
FS(Hz)
30.6
VAS(l)
95
QTS
0.54
PWR(W)
1600
SPL(dB)
88.5
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
30.6
Vas(l)
95
Qts
0.54
Qms
5.92
Qes
0.59
Bl(Tm)
15.4
Mms(gr)
227
Cms(mm/N)
0.119
Rms(kg/s)
7.382
Le(mH)
2.1
Re(Ohm)
3.2
Sd(sq.mm)
75000
Vd(l)
0.75
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
92.5
Mounting Information
Speaker Displacement (l)
6
Total Diameter (mm)
394
Cutout Diameter (mm)
356
Mounting Depth (mm)
181
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
