Model

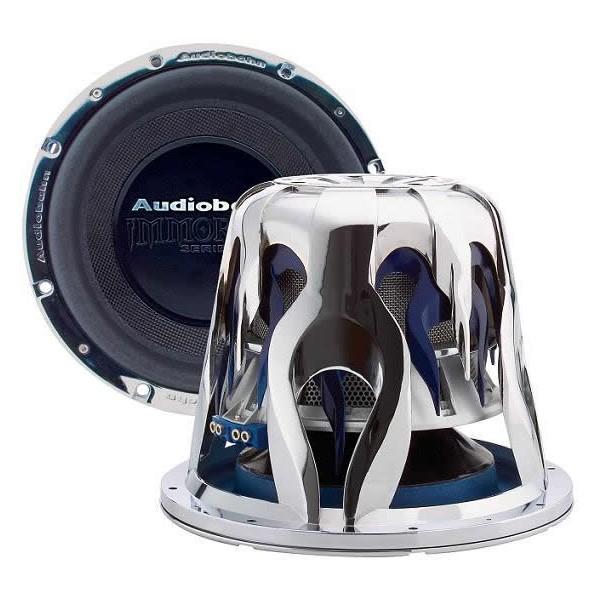

Audiobahn AWIS 15J
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
15"
FS(Hz)
45
VAS(l)
47
QTS
0.49
PWR(W)
0
SPL(dB)
90.9
IMP(Ohm)
0x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
47
Qts
0.493
Qms
7.21
Qes
0.53
Bl(Tm)
10.9
Mms(gr)
173
Cms(mm/N)
0.072
Rms(kg/s)
6.77
Le(mH)
2.41
Re(Ohm)
1.3
Sd(sq.mm)
880
Vd(l)
19.82
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
0
RMS Power(W.)
2250
Number of Coils
1
Impedance Z-Nom(Ohm)
0
Reference efficiency η0(%)
0.78
Sensitivity(dB) 1-W
90.9
Sensitivity(dB) 2.8-V
98.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
