Model

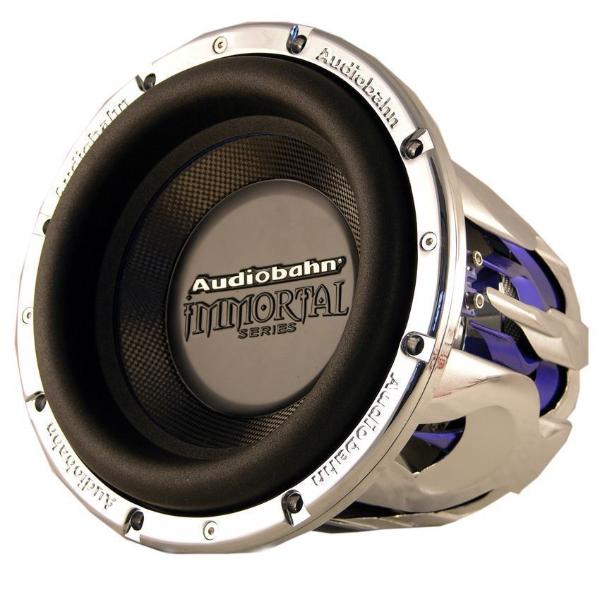

Audiobahn AWIS10P
Rating
DIAM
10"
FS(Hz)
58
VAS(l)
7.5
QTS
0.47
PWR(W)
3000
SPL(dB)
86.4
IMP(Ohm)
2x4
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
58
Vas(l)
7.5
Qts
0.475
Qms
7.6
Qes
0.507
Bl(Tm)
11.6
Mms(gr)
145
Cms(mm/N)
0.052
Rms(kg/s)
6.94
Le(mH)
2.08
Re(Ohm)
1.3
Sd(sq.mm)
32000
Vd(l)
0.4
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
4
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
94.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
