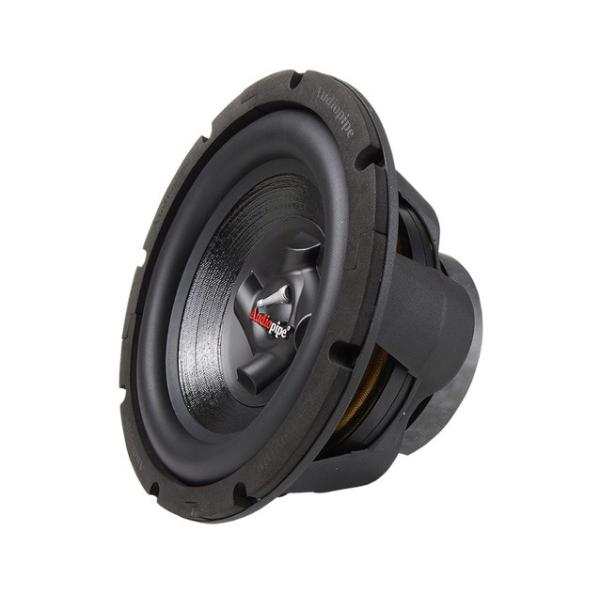

Audiopipe TS-PC10
Audiopipe TS-PC10
Model

Audiopipe TS-PC10

Rating
DIAM
10"
FS(Hz)
44
VAS(l)
21
QTS
0.55
PWR(W)
400
SPL(dB)
0
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
44
Vas(l)
21
Qts
0.55
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.4
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
