Model

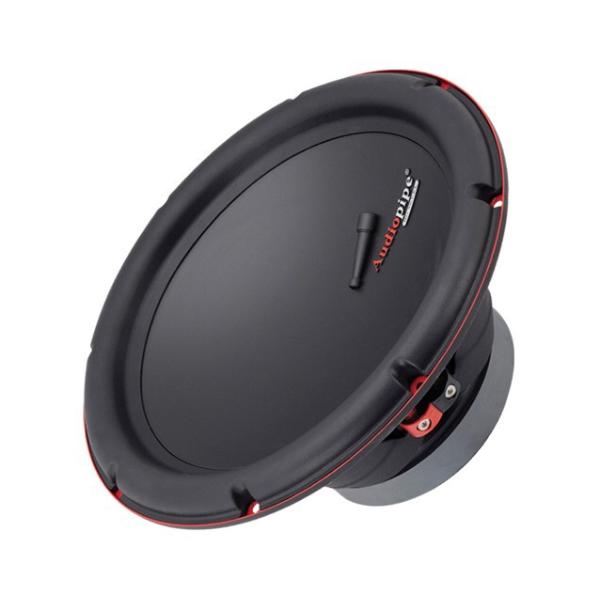

Audiopipe TS-VR10
Rating
DIAM
10"
FS(Hz)
35
VAS(l)
19.8
QTS
0.5
PWR(W)
600
SPL(dB)
82.3
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
19.8
Qts
0.5
Qms
2.5
Qes
0.76
Bl(Tm)
23.3
Mms(gr)
262
Cms(mm/N)
0.079
Rms(kg/s)
23.02
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
42000
Vd(l)
0.315
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.3
Sensitivity(dB) 2.8-V
82.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
267
Cutout Diameter (mm)
254
Mounting Depth (mm)
145
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
