Model

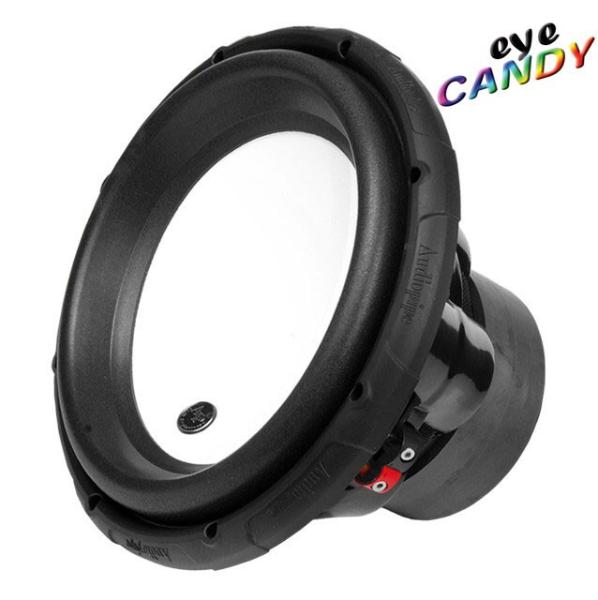

Audiopipe TXX-APA-15
Rating
DIAM
15"
FS(Hz)
32
VAS(l)
48
QTS
0.5
PWR(W)
2000
SPL(dB)
85.1
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
48
Qts
0.5
Qms
2.6
Qes
0.75
Bl(Tm)
28.9
Mms(gr)
411
Cms(mm/N)
0.47
Rms(kg/s)
31.78
Le(mH)
2.8
Re(Ohm)
7.6
Sd(sq.mm)
85000
Vd(l)
0.552
X-max(mm)
7
X-mech(mm)
20
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
85.3
Mounting Information
Speaker Displacement (l)
4.23
Total Diameter (mm)
398
Cutout Diameter (mm)
351
Mounting Depth (mm)
208
Magnet Diameter (mm)
170
Optimum Enclosures
Enclosures
Closed, BP4
