Model

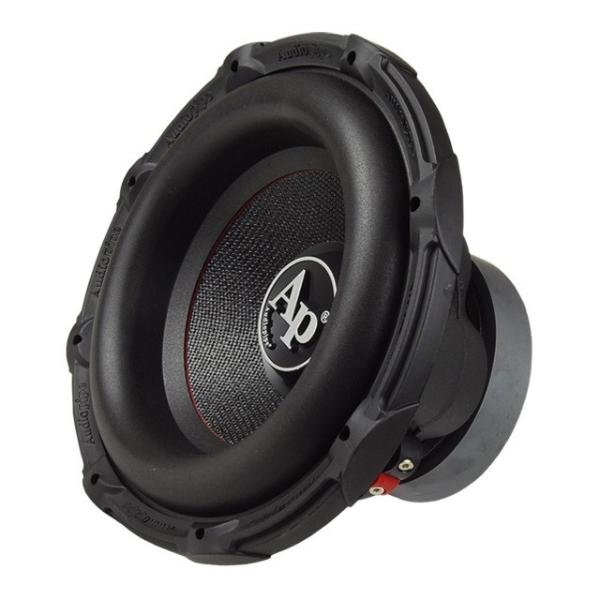

Audiopipe TXX-BD1-12
Rating
DIAM
12"
FS(Hz)
38
VAS(l)
26
QTS
0.49
PWR(W)
1200
SPL(dB)
84.8
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
26
Qts
0.49
Qms
2.3
Qes
0.73
Bl(Tm)
22
Mms(gr)
213
Cms(mm/N)
0.082
Rms(kg/s)
22.11
Le(mH)
2.3
Re(Ohm)
3.6
Sd(sq.mm)
53000
Vd(l)
0.225
X-max(mm)
4
X-mech(mm)
25
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
88.2
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
329
Cutout Diameter (mm)
290
Mounting Depth (mm)
152
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Closed, BP4
