Model

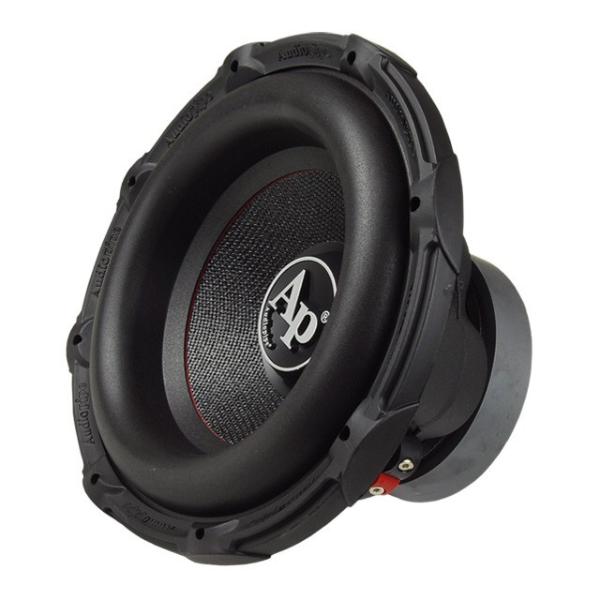

Audiopipe TXX-BD2-12
Rating
DIAM
12"
FS(Hz)
26
VAS(l)
47
QTS
0.46
PWR(W)
1500
SPL(dB)
84.1
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
47
Qts
0.46
Qms
4.5
Qes
0.49
Bl(Tm)
24
Mms(gr)
161
Cms(mm/N)
0.12
Rms(kg/s)
5.83
Le(mH)
3.6
Re(Ohm)
3.6
Sd(sq.mm)
53000
Vd(l)
0.689
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
87.6
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
321
Cutout Diameter (mm)
274
Mounting Depth (mm)
184
Magnet Diameter (mm)
173
Optimum Enclosures
Enclosures
Closed, BP4
