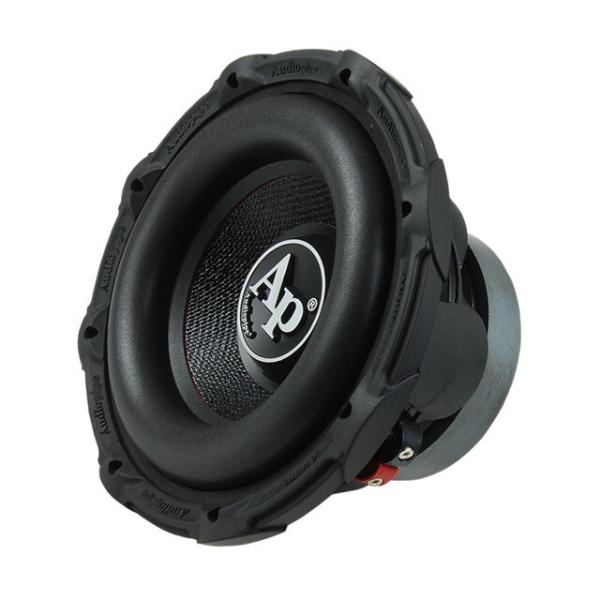

Audiopipe TXX-BD3-10
Audiopipe TXX-BD3-10
Model

Audiopipe TXX-BD3-10

Rating
DIAM
10"
FS(Hz)
37
VAS(l)
16
QTS
0.45
PWR(W)
1400
SPL(dB)
89
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
37
Vas(l)
16
Qts
0.45
Qms
2.1
Qes
0.573
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.4
Total Diameter (mm)
0
Cutout Diameter (mm)
225
Mounting Depth (mm)
173
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
