Model

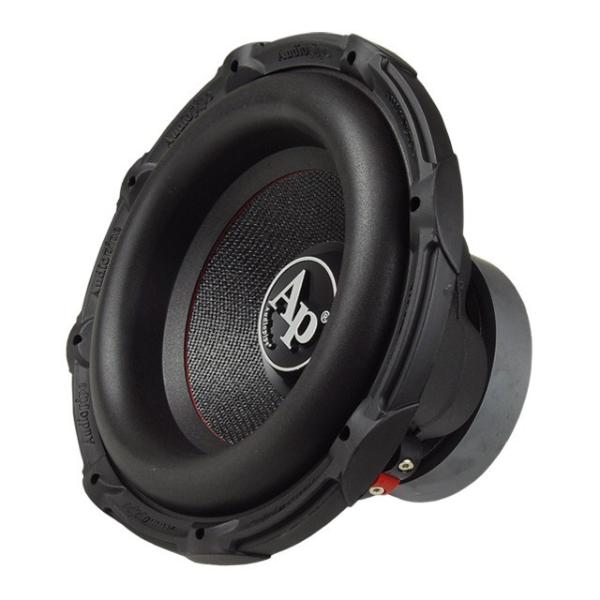

Audiopipe TXX-BD3-12
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
25
QTS
0.43
PWR(W)
1800
SPL(dB)
85.3
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
25
Qts
0.43
Qms
2.7
Qes
0.48
Bl(Tm)
28
Mms(gr)
120
Cms(mm/N)
0.15
Rms(kg/s)
9.77
Le(mH)
5.8
Re(Ohm)
7.2
Sd(sq.mm)
53000
Vd(l)
0.689
X-max(mm)
13
X-mech(mm)
50
General Parameters
Diameter (inch)
12
Max Power(W.)
1800
RMS Power(W.)
900
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.3
Sensitivity(dB) 2.8-V
85.8
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
321
Cutout Diameter (mm)
275
Mounting Depth (mm)
193
Magnet Diameter (mm)
180
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
