Model

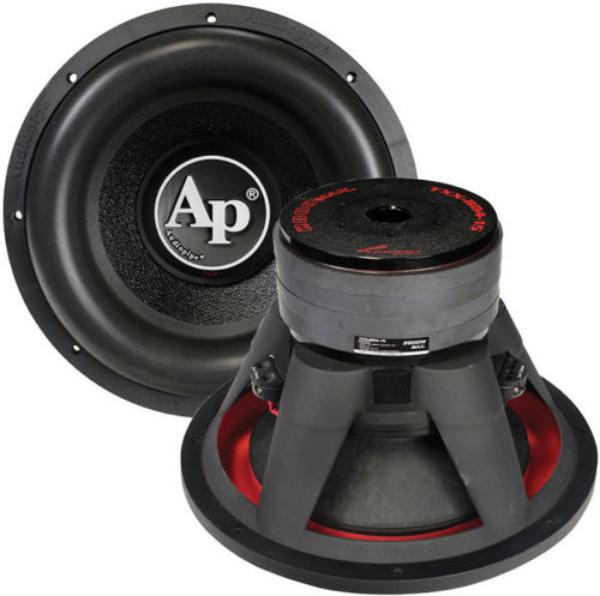

Audiopipe TXX-BD4-15
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
15"
FS(Hz)
30
VAS(l)
69.1
QTS
0.37
PWR(W)
2800
SPL(dB)
90
IMP(Ohm)
0x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
69.1
Qts
0.37
Qms
2.3
Qes
0.44
Bl(Tm)
37.5
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2800
RMS Power(W.)
1400
Number of Coils
2
Impedance Z-Nom(Ohm)
0
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.53
Total Diameter (mm)
394
Cutout Diameter (mm)
352
Mounting Depth (mm)
225
Magnet Diameter (mm)
191
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
