Model

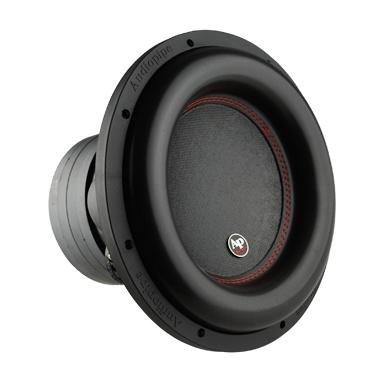

Audiopipe TXX-BDC4-12
Rating
DIAM
12"
FS(Hz)
33
VAS(l)
38
QTS
0.35
PWR(W)
2200
SPL(dB)
87
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
38
Qts
0.35
Qms
2.2
Qes
0.42
Bl(Tm)
34
Mms(gr)
340
Cms(mm/N)
0.95
Rms(kg/s)
32.04
Le(mH)
5.6
Re(Ohm)
3.6
Sd(sq.mm)
53000
Vd(l)
0.437
X-max(mm)
8
X-mech(mm)
25
General Parameters
Diameter (inch)
12
Max Power(W.)
2200
RMS Power(W.)
1100
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
90.4
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
316
Cutout Diameter (mm)
275
Mounting Depth (mm)
200
Magnet Diameter (mm)
180
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
