Model

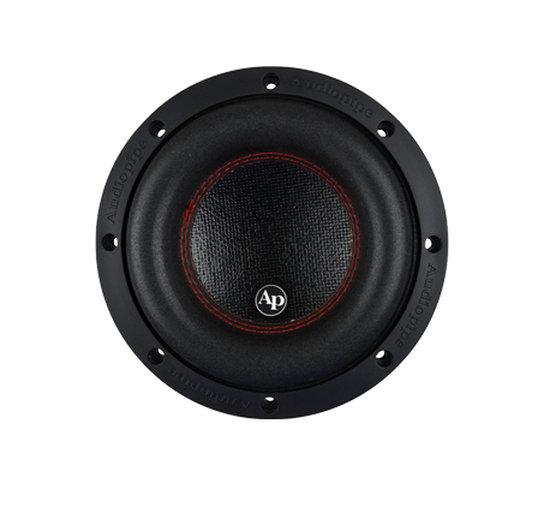

Audiopipe TXX-BDC4-6
Rating
DIAM
6"
FS(Hz)
60
VAS(l)
3
QTS
0.48
PWR(W)
500
SPL(dB)
82
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60
Vas(l)
3
Qts
0.48
Qms
2
Qes
0.63
Bl(Tm)
17
Mms(gr)
63
Cms(mm/N)
0.112
Rms(kg/s)
11.88
Le(mH)
0
Re(Ohm)
7.7
Sd(sq.mm)
13743
Vd(l)
0.058
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
82
Sensitivity(dB) 2.8-V
82.1
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
180
Cutout Diameter (mm)
152
Mounting Depth (mm)
120
Magnet Diameter (mm)
126
Optimum Enclosures
Enclosures
Vented, BP6
