Model

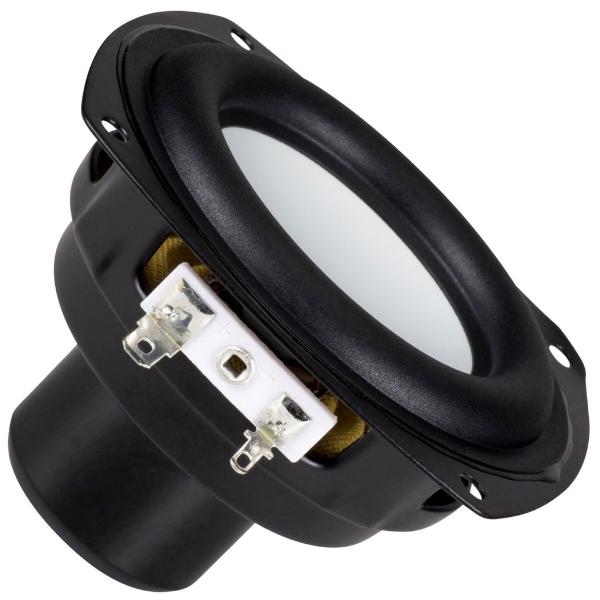

Aura NS3-193-8A
Rating
DIAM
3"
FS(Hz)
80
VAS(l)
1.2
QTS
0.67
PWR(W)
80
SPL(dB)
81.3
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
80
Vas(l)
1.2
Qts
0.67
Qms
8
Qes
0.73
Bl(Tm)
4.7
Mms(gr)
4
Cms(mm/N)
0.92
Rms(kg/s)
0.27
Le(mH)
0
Re(Ohm)
7.6
Sd(sq.mm)
3100
Vd(l)
0.015
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
80
RMS Power(W.)
20
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
75
Mounting Depth (mm)
55
Magnet Diameter (mm)
36
Optimum Enclosures
Enclosures
Vented, BP6P
