Model

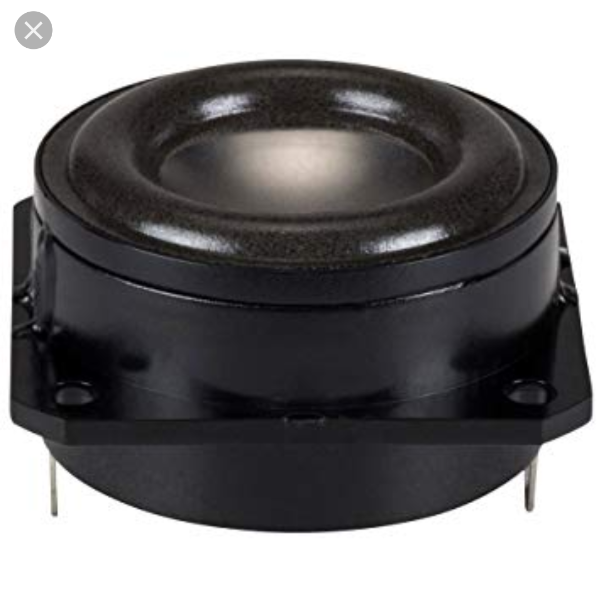

Aura NSW1-205-8A
Rating
DIAM
1"
FS(Hz)
220
VAS(l)
0
QTS
0.7
PWR(W)
20
SPL(dB)
77.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
220
Vas(l)
0
Qts
0.7
Qms
2.1
Qes
1.05
Bl(Tm)
1.9
Mms(gr)
1
Cms(mm/N)
1.047
Rms(kg/s)
0.33
Le(mH)
0
Re(Ohm)
5.5
Sd(sq.mm)
519
Vd(l)
0.001
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
1
Max Power(W.)
20
RMS Power(W.)
5
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.04
Sensitivity(dB) 1-W
77.9
Sensitivity(dB) 2.8-V
79.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
36
Mounting Depth (mm)
13
Magnet Diameter (mm)
36
Optimum Enclosures
Enclosures
Vented, BP6
