Model

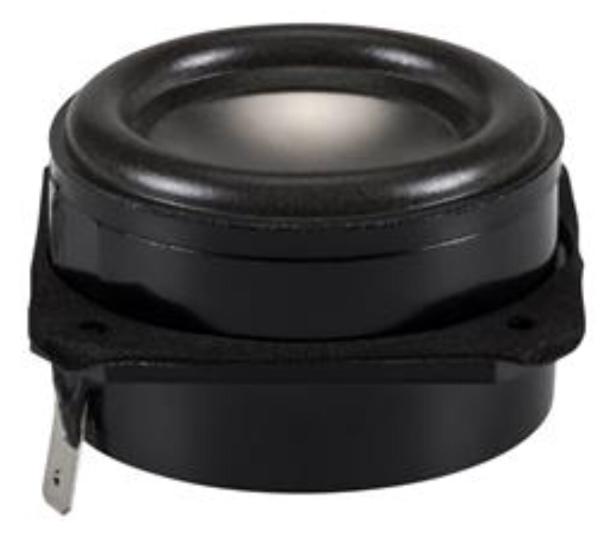

Aura NSW2-326-8A
Rating
DIAM
2"
FS(Hz)
250
VAS(l)
0.1
QTS
0.68
PWR(W)
60
SPL(dB)
84.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
250
Vas(l)
0.1
Qts
0.68
Qms
4.72
Qes
0.8
Bl(Tm)
3.5
Mms(gr)
1
Cms(mm/N)
0.39
Rms(kg/s)
0.346
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
1320
Vd(l)
0.004
X-max(mm)
3
X-mech(mm)
5
General Parameters
Diameter (inch)
2
Max Power(W.)
60
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
85.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
47
Cutout Diameter (mm)
47
Mounting Depth (mm)
26
Magnet Diameter (mm)
47
Optimum Enclosures
Enclosures
Vented, BP6
