Model

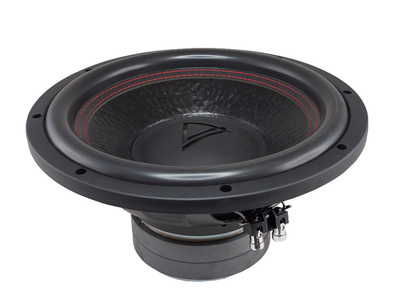

Aura SW-A124V2
Rating
DIAM
12"
FS(Hz)
33
VAS(l)
28.3
QTS
0.58
PWR(W)
901
SPL(dB)
83.9
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
28.3
Qts
0.58
Qms
7.812
Qes
0.63
Bl(Tm)
25.8
Mms(gr)
169
Cms(mm/N)
0.086
Rms(kg/s)
4.47
Le(mH)
0
Re(Ohm)
6.8
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
901
RMS Power(W.)
401
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
84.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
