Model

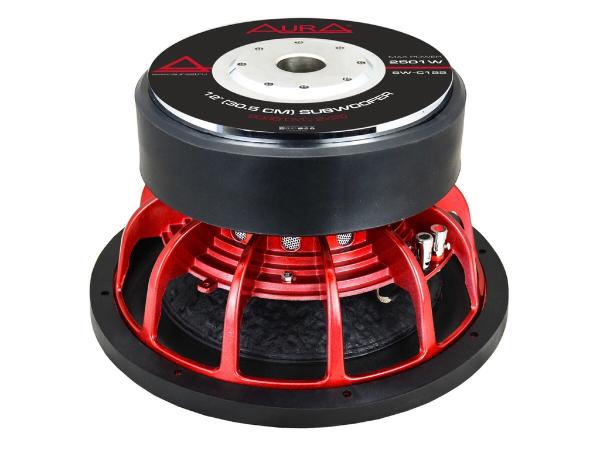

Aura SW-C122
Rating
DIAM
12"
FS(Hz)
38
VAS(l)
12.7
QTS
0.41
PWR(W)
2501
SPL(dB)
0
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
12.7
Qts
0.408
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2501
RMS Power(W.)
1251
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
90
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
319
Cutout Diameter (mm)
0
Mounting Depth (mm)
183
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
