Model

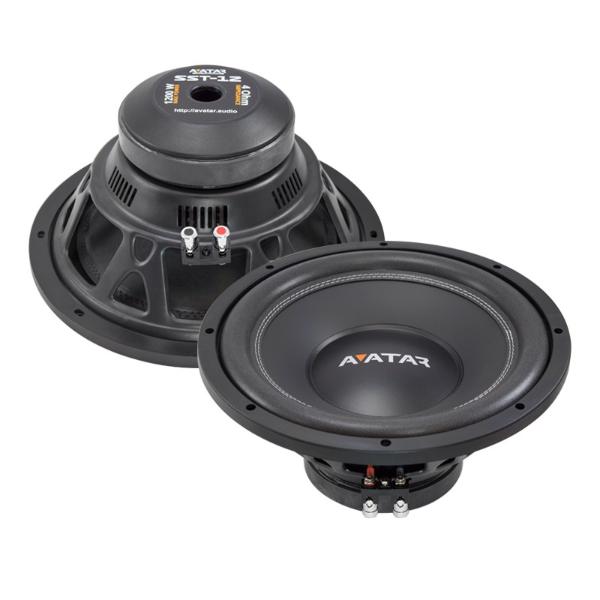

Avatar SST-12
Rating
DIAM
12"
FS(Hz)
37.4
VAS(l)
47.6
QTS
0.51
PWR(W)
600
SPL(dB)
89
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37.4
Vas(l)
47.6
Qts
0.512
Qms
0
Qes
0
Bl(Tm)
13.4
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
274
Mounting Depth (mm)
154
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
