Model

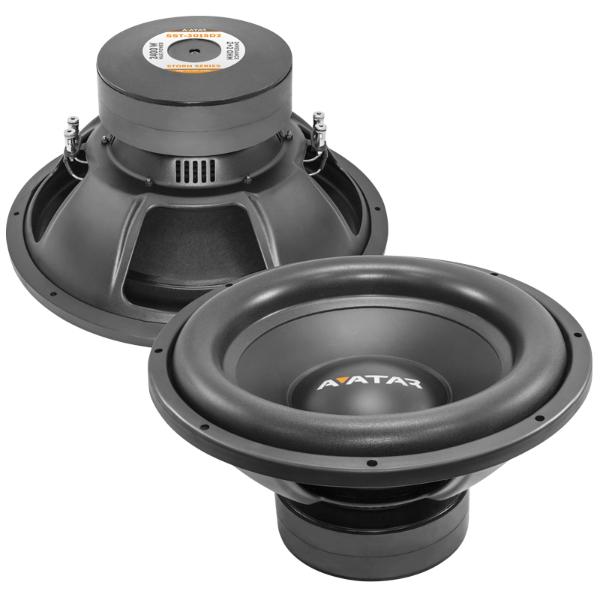

Avatar SST-3015D2
Rating
DIAM
15"
FS(Hz)
42
VAS(l)
31.8
QTS
0.94
PWR(W)
2400
SPL(dB)
85
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
31.8
Qts
0.94
Qms
0
Qes
0
Bl(Tm)
15.5
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0.7
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
393
Cutout Diameter (mm)
353
Mounting Depth (mm)
187
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, BP4
