Model

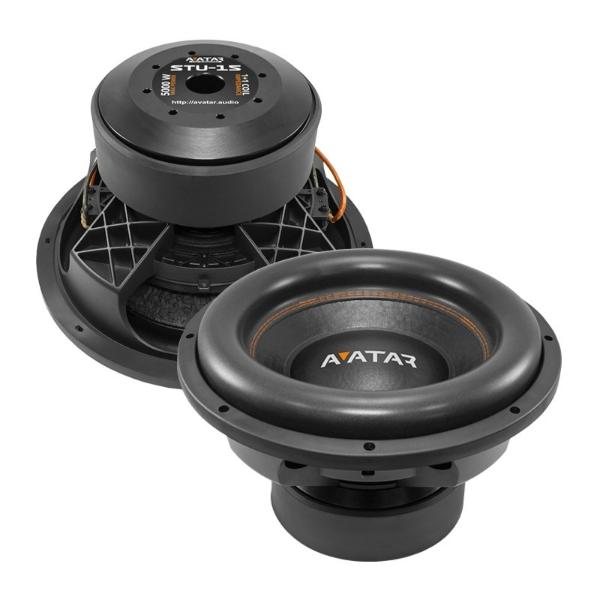

Avatar STU-15D1
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
149
QTS
0.44
PWR(W)
5000
SPL(dB)
88
IMP(Ohm)
1x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
149
Qts
0.44
Qms
0
Qes
0
Bl(Tm)
22.3
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0.7
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
38
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
412
Cutout Diameter (mm)
348
Mounting Depth (mm)
220
Magnet Diameter (mm)
226
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
