Model

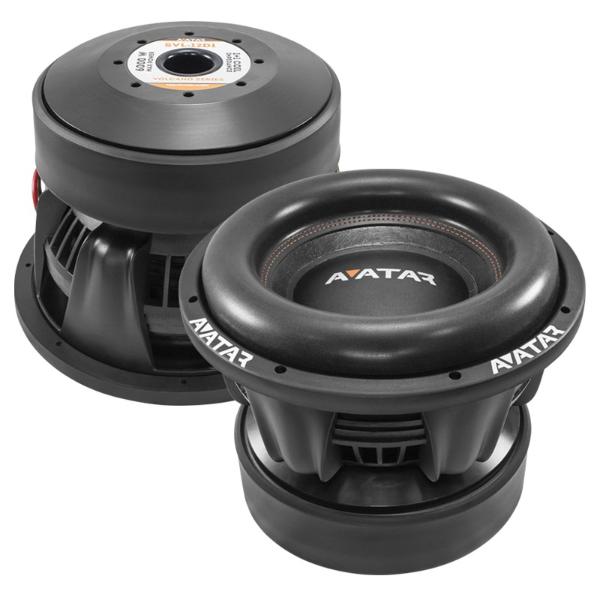

Avatar SVL-12D2
Rating
DIAM
12"
FS(Hz)
33
VAS(l)
78
QTS
0.4
PWR(W)
6000
SPL(dB)
88
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
78
Qts
0.4
Qms
0
Qes
0
Bl(Tm)
24.5
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0.7
Sd(sq.mm)
49000
Vd(l)
1.96
X-max(mm)
40
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
228
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
