Model

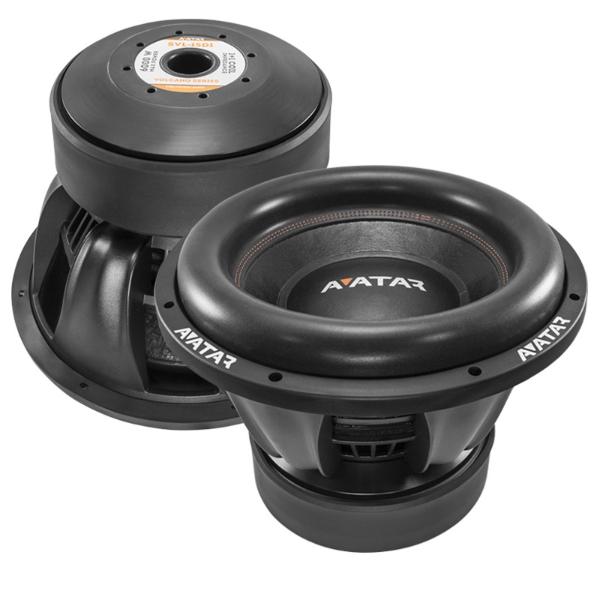

Avatar SVL-15D1
Rating
DIAM
15"
FS(Hz)
32
VAS(l)
143
QTS
0.41
PWR(W)
6000
SPL(dB)
89
IMP(Ohm)
1x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
143
Qts
0.41
Qms
0
Qes
0
Bl(Tm)
24.5
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
40
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
357
Mounting Depth (mm)
260
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
