Model

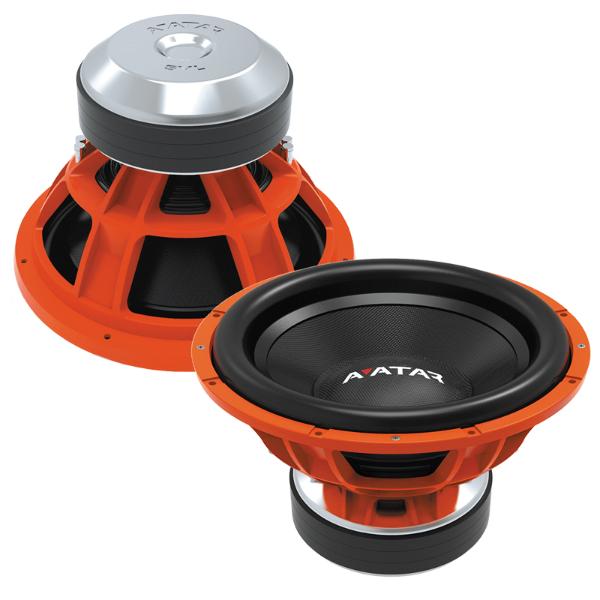

Avatar SVL-1847D1
Rating
DIAM
18"
FS(Hz)
33
VAS(l)
178
QTS
0.33
PWR(W)
7600
SPL(dB)
88.5
IMP(Ohm)
1x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
178
Qts
0.33
Qms
0
Qes
0
Bl(Tm)
27.3
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0.7
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
33
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
7600
RMS Power(W.)
3800
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
464
Cutout Diameter (mm)
427
Mounting Depth (mm)
312
Magnet Diameter (mm)
280
Optimum Enclosures
Enclosures
Vented, BP6P
