Model

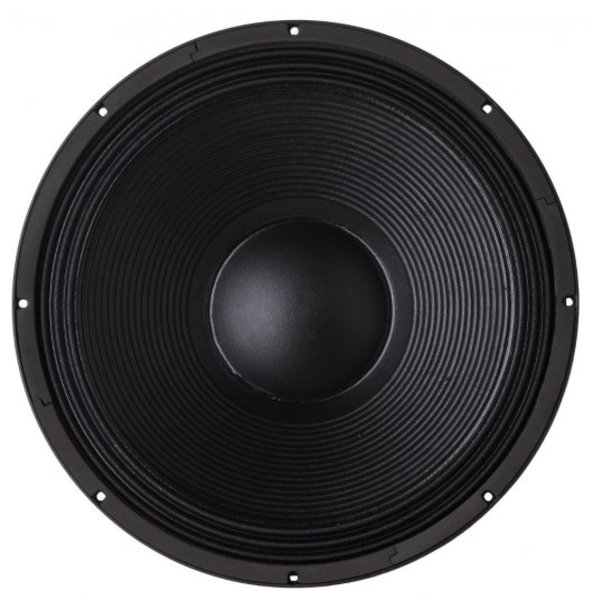

B&C Speakers 18SW100
Rating
DIAM
18"
FS(Hz)
35
VAS(l)
180
QTS
0.38
PWR(W)
1500
SPL(dB)
94.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
180
Qts
0.38
Qms
5.9
Qes
0.4
Bl(Tm)
26.1
Mms(gr)
234
Cms(mm/N)
0.088
Rms(kg/s)
8.722
Le(mH)
2.2
Re(Ohm)
5.3
Sd(sq.mm)
121000
Vd(l)
1.512
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.86
Sensitivity(dB) 1-W
94.7
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
10
Total Diameter (mm)
460
Cutout Diameter (mm)
422
Mounting Depth (mm)
239
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
