Model

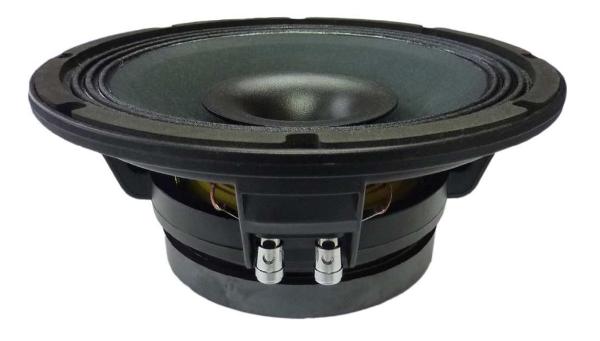

Beyma 10CX300/FE
Rating
DIAM
10"
FS(Hz)
48
VAS(l)
62.7
QTS
0.38
PWR(W)
600
SPL(dB)
94.1
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
62.7
Qts
0.38
Qms
5.3
Qes
0.41
Bl(Tm)
11.6
Mms(gr)
35
Cms(mm/N)
0.307
Rms(kg/s)
2.05
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
37948
Vd(l)
0.256
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
