Model

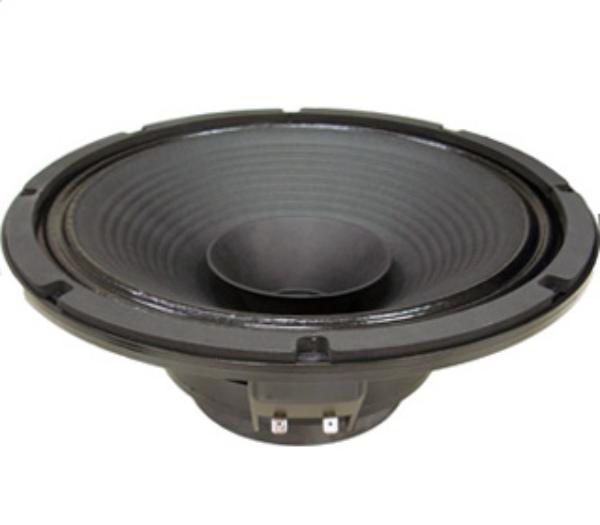

Beyma 12GA50
Rating
DIAM
12"
FS(Hz)
90
VAS(l)
34
QTS
1.16
PWR(W)
500
SPL(dB)
94.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
90
Vas(l)
34
Qts
1.16
Qms
14.8
Qes
1.26
Bl(Tm)
10
Mms(gr)
34
Cms(mm/N)
0.092
Rms(kg/s)
1.34
Le(mH)
0.6
Re(Ohm)
6.2
Sd(sq.mm)
53000
Vd(l)
0.106
X-max(mm)
2
X-mech(mm)
12
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.9
Sensitivity(dB) 1-W
94.8
Sensitivity(dB) 2.8-V
95.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
