Model

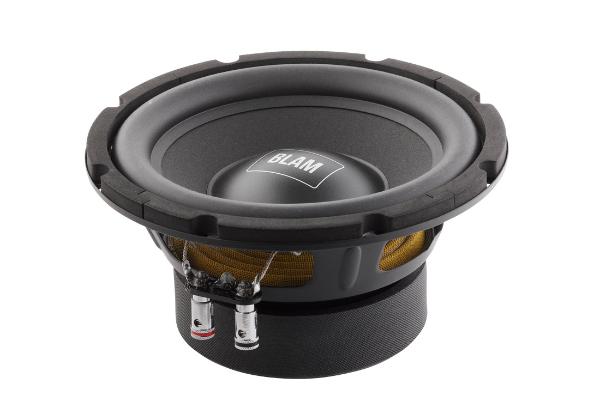

BLAM R8 EL
Rating
DIAM
8"
FS(Hz)
35.6
VAS(l)
20.8
QTS
0.47
PWR(W)
300
SPL(dB)
84.5
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
35.6
Vas(l)
20.8
Qts
0.47
Qms
5.74
Qes
0.512
Bl(Tm)
7.4
Mms(gr)
62
Cms(mm/N)
0.324
Rms(kg/s)
2.404
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
21286
Vd(l)
0.17
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
181
Mounting Depth (mm)
97
Magnet Diameter (mm)
122
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
