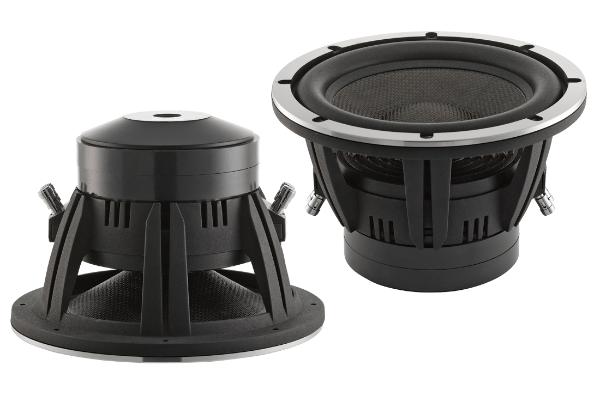

BLAM SUPER SUB 10
BLAM SUPER SUB 10
Model

BLAM SUPER SUB 10

Rating
DIAM
10"
FS(Hz)
48.2
VAS(l)
22.5
QTS
0.42
PWR(W)
1000
SPL(dB)
89.3
IMP(Ohm)
2x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
48.2
Vas(l)
22.5
Qts
0.42
Qms
5.36
Qes
0.456
Bl(Tm)
0
Mms(gr)
74
Cms(mm/N)
0.147
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1
Sd(sq.mm)
33006
Vd(l)
0.231
X-max(mm)
7
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
162
Magnet Diameter (mm)
155

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
