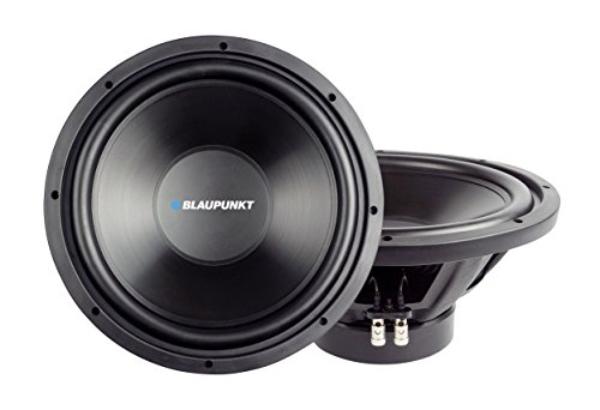

Blaupunkt GBW101
Blaupunkt GBW101
Model

Blaupunkt GBW101

Rating
DIAM
10"
FS(Hz)
36.2
VAS(l)
33.1
QTS
0.49
PWR(W)
600
SPL(dB)
86.4
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
36.2
Vas(l)
33.1
Qts
0.49
Qms
4.96
Qes
0.544
Bl(Tm)
11.4
Mms(gr)
98
Cms(mm/N)
0.198
Rms(kg/s)
4.476
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
34332
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
90.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
272
Cutout Diameter (mm)
234
Mounting Depth (mm)
129
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
