Model

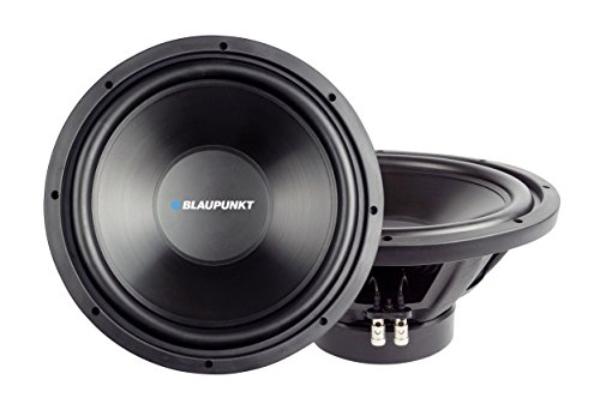

Blaupunkt GBW801
Rating
DIAM
8"
FS(Hz)
46
VAS(l)
13.8
QTS
0.41
PWR(W)
400
SPL(dB)
86.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
46
Vas(l)
13.8
Qts
0.406
Qms
3.638
Qes
0.457
Bl(Tm)
9.5
Mms(gr)
45
Cms(mm/N)
0.268
Rms(kg/s)
3.551
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
19028
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
180
Mounting Depth (mm)
95
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
