Model

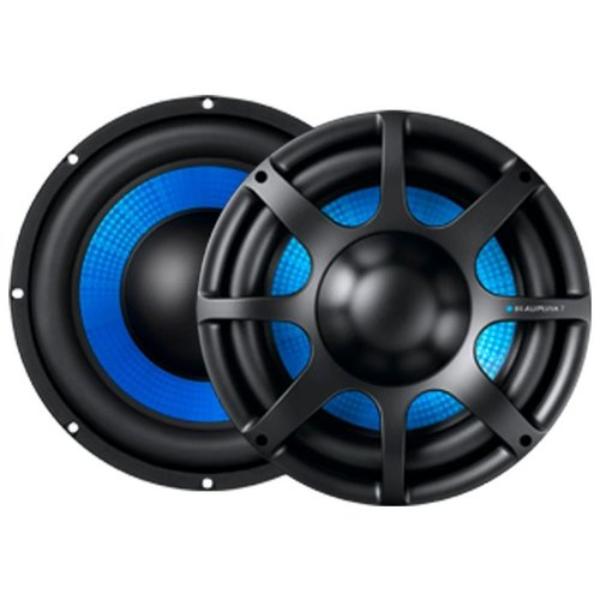

Blaupunkt GT POWER 1000W
Rating
DIAM
10"
FS(Hz)
36
VAS(l)
27.3
QTS
0.45
PWR(W)
1100
SPL(dB)
85.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
27.3
Qts
0.45
Qms
4.9
Qes
0.496
Bl(Tm)
13
Mms(gr)
107
Cms(mm/N)
0.183
Rms(kg/s)
4.93
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
32400
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1100
RMS Power(W.)
243
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
125
Magnet Diameter (mm)
134
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
