Model

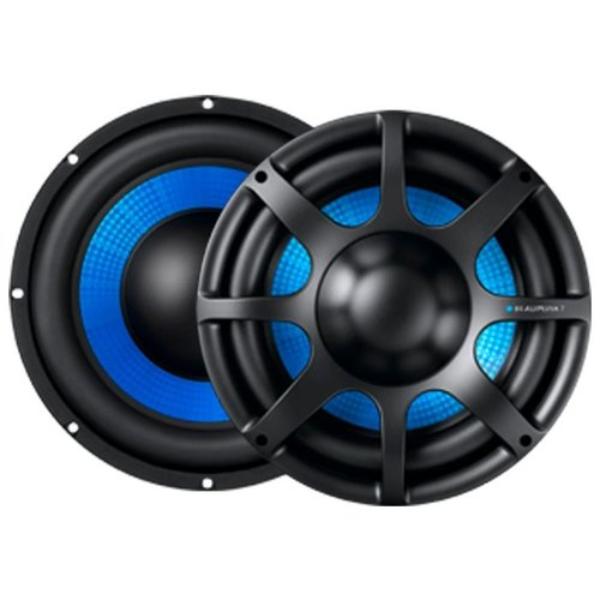

Blaupunkt GT POWER 1200W
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
80
QTS
0.45
PWR(W)
1200
SPL(dB)
87.3
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
80
Qts
0.45
Qms
5
Qes
0.495
Bl(Tm)
12.9
Mms(gr)
136
Cms(mm/N)
0.238
Rms(kg/s)
4.778
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
48700
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
246
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
139
Magnet Diameter (mm)
134
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
