Model

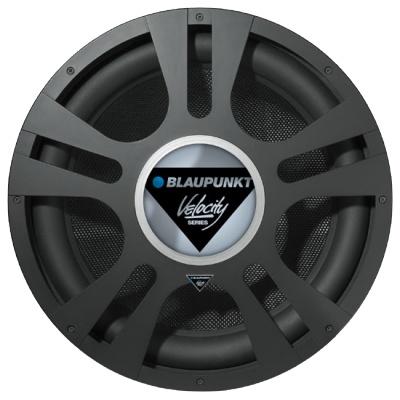

Blaupunkt VPW 460
Rating
DIAM
18"
FS(Hz)
37
VAS(l)
36.7
QTS
0.6
PWR(W)
5400
SPL(dB)
86
IMP(Ohm)
2x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
36.7
Qts
0.6
Qms
3.8
Qes
0.713
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
73000
Vd(l)
1.095
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
5400
RMS Power(W.)
1800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
420
Mounting Depth (mm)
245
Magnet Diameter (mm)
250
Optimum Enclosures
Enclosures
Closed, BP4
