Model

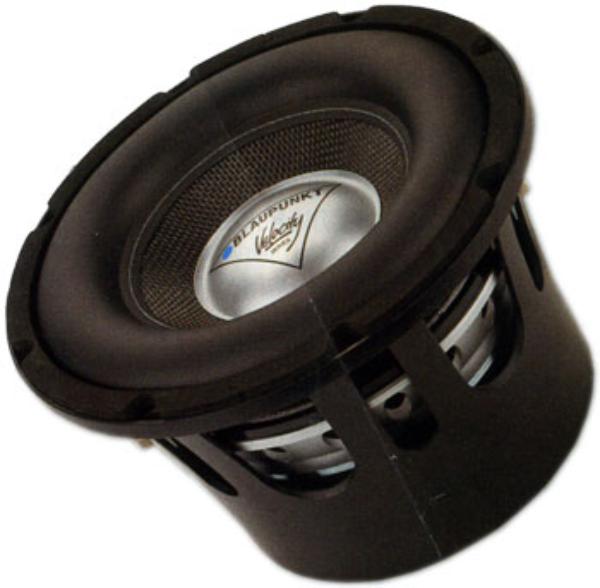

Blaupunkt VPW300
Rating
DIAM
12"
FS(Hz)
42
VAS(l)
13.5
QTS
0.48
PWR(W)
3600
SPL(dB)
93
IMP(Ohm)
2x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
13.5
Qts
0.48
Qms
4.3
Qes
0.54
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
26774
Vd(l)
0.4
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3600
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
181
Magnet Diameter (mm)
230
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
