Model

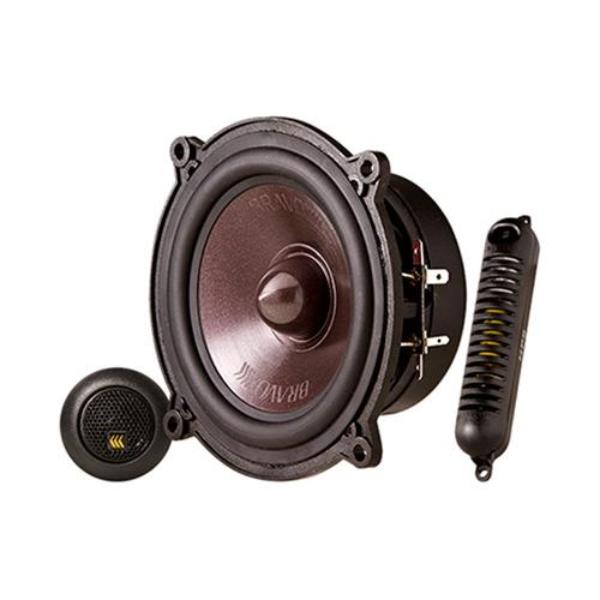

Bravox CS50B
Rating
DIAM
5"
FS(Hz)
90
VAS(l)
3
QTS
0.71
PWR(W)
130
SPL(dB)
87
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
90
Vas(l)
3
Qts
0.71
Qms
3.9
Qes
0.868
Bl(Tm)
4.2
Mms(gr)
8
Cms(mm/N)
0.417
Rms(kg/s)
1.087
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
7500
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
130
RMS Power(W.)
65
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
