Model

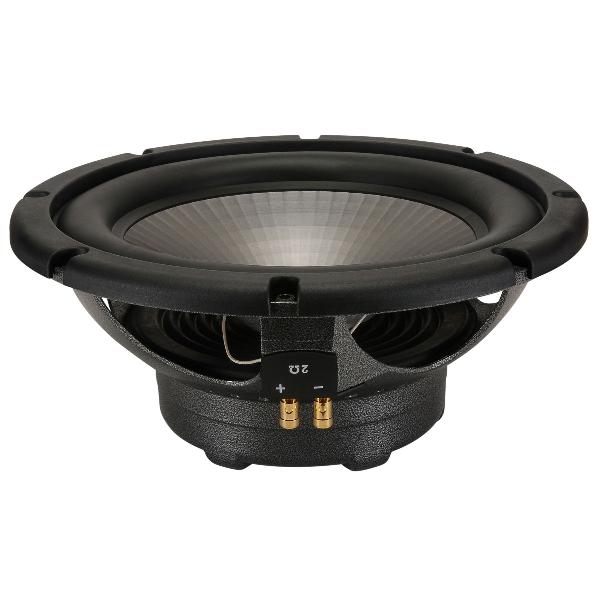

Bravox EXS15D-2
Rating
DIAM
15"
FS(Hz)
23
VAS(l)
150.1
QTS
0.39
PWR(W)
1200
SPL(dB)
88.1
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
150.1
Qts
0.39
Qms
4.2
Qes
0.43
Bl(Tm)
0
Mms(gr)
236
Cms(mm/N)
0.203
Rms(kg/s)
8.1
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
80387
Vd(l)
0.884
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.41
Sensitivity(dB) 1-W
88.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
410
Cutout Diameter (mm)
356
Mounting Depth (mm)
156
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
