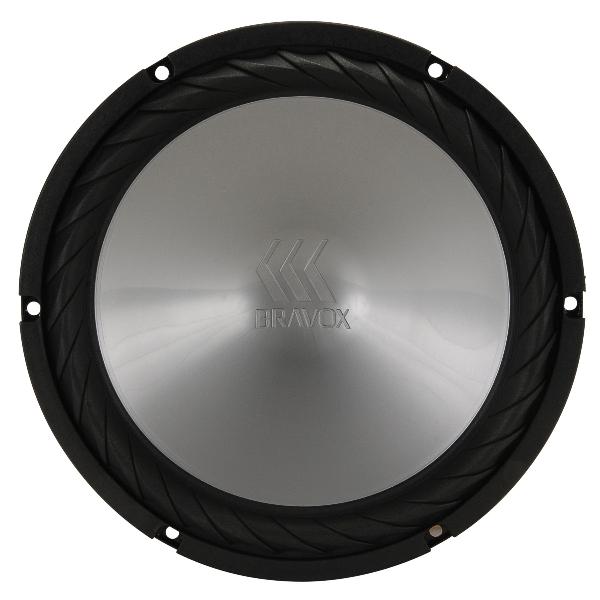

Bravox PXW10D-2
Bravox PXW10D-2
Model

Bravox PXW10D-2

Rating
DIAM
12"
FS(Hz)
30
VAS(l)
58
QTS
0.4
PWR(W)
400
SPL(dB)
87.5
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
30
Vas(l)
58
Qts
0.4
Qms
5.7
Qes
0.43
Bl(Tm)
6.1
Mms(gr)
91
Cms(mm/N)
0.308
Rms(kg/s)
3.02
Le(mH)
0.48
Re(Ohm)
0.9
Sd(sq.mm)
36454
Vd(l)
0.255
X-max(mm)
7
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
96.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
133
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
