Model

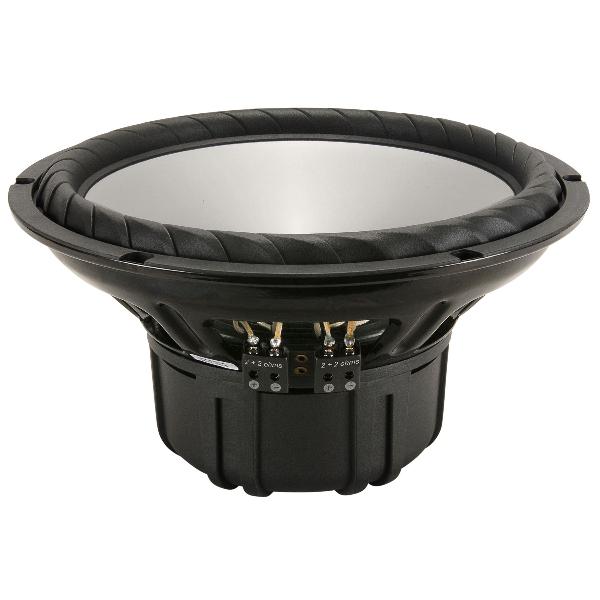

Bravox PXW12D-2
Rating
DIAM
12"
FS(Hz)
26
VAS(l)
109.9
QTS
0.39
PWR(W)
480
SPL(dB)
88.5
IMP(Ohm)
2x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
109.9
Qts
0.39
Qms
5.5
Qes
0.42
Bl(Tm)
7.2
Mms(gr)
136
Cms(mm/N)
0.275
Rms(kg/s)
4.05
Le(mH)
0.57
Re(Ohm)
1
Sd(sq.mm)
53076
Vd(l)
0.393
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
480
RMS Power(W.)
240
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
97.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
308
Cutout Diameter (mm)
283
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
