Model

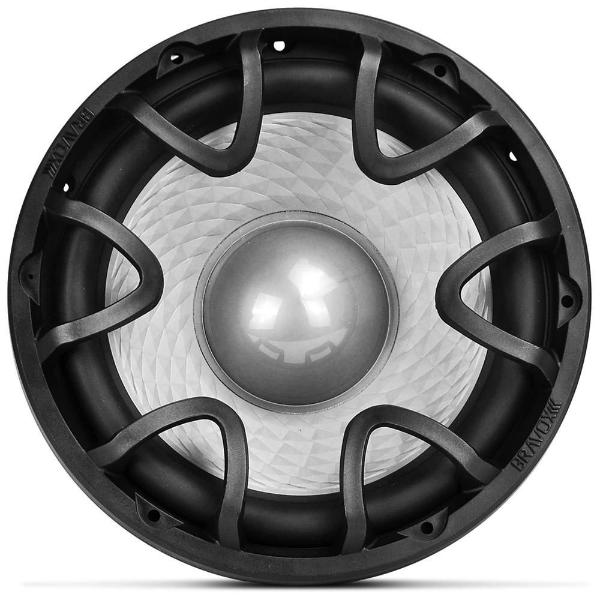

Bravox UXP-12D2
Rating
DIAM
12"
FS(Hz)
32
VAS(l)
61
QTS
0.47
PWR(W)
800
SPL(dB)
87.8
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
61
Qts
0.47
Qms
5.29
Qes
0.51
Bl(Tm)
7.5
Mms(gr)
160
Cms(mm/N)
0.155
Rms(kg/s)
6.081
Le(mH)
0.62
Re(Ohm)
0.9
Sd(sq.mm)
53000
Vd(l)
0.424
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
97.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
311
Cutout Diameter (mm)
280
Mounting Depth (mm)
168
Magnet Diameter (mm)
175
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
