Model

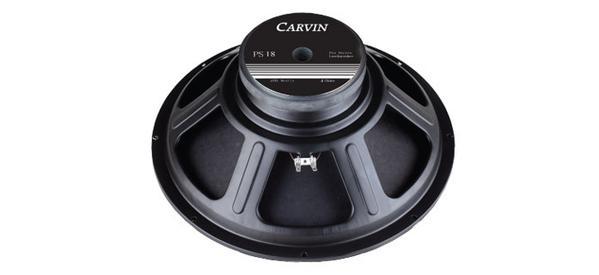

Carvin PS18-8
Rating
DIAM
18"
FS(Hz)
35
VAS(l)
531.8
QTS
0.48
PWR(W)
1000
SPL(dB)
97.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
531.8
Qts
0.48
Qms
2.5
Qes
0.59
Bl(Tm)
15.6
Mms(gr)
128
Cms(mm/N)
0.162
Rms(kg/s)
11.259
Le(mH)
1.02
Re(Ohm)
5.1
Sd(sq.mm)
152136
Vd(l)
0.913
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
3.73
Sensitivity(dB) 1-W
97.7
Sensitivity(dB) 2.8-V
99.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
